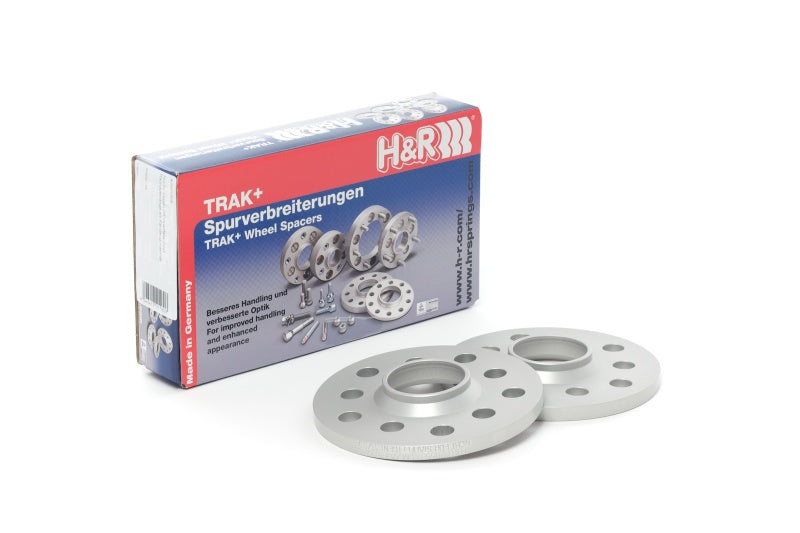

H&R Trak+ 23mm DR Wheel Adaptor Bolt 5/130 Center Bore 71.6 Bolt Thread 14x1.5

H&R Trak+ 23mm DR Wheel Adaptor Bolt 5/130 Center Bore 71.6 Bolt Thread 14x1.5

$152.96 USD
$169.95 USD $152.96 USD
Sale Sold out
Shipping calculated at checkout.
  • Manufacturer Part Number: 46957161
    • All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60 End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

    This Part Fits:

    Year Make Model Submodel
    2007-2010 Audi Q7 Base
    2007-2015 Audi Q7 Premium
    2011-2015 Audi Q7 Premium Plus
    2010-2015 Audi Q7 Prestige
    2009-2010 Audi Q7 TDI
    2011-2015 Audi Q7 TDI Premium
    2011-2015 Audi Q7 TDI Premium Plus
    2011-2015 Audi Q7 TDI Prestige
    1998-2019 Porsche 911 Carrera
    1999-2004,2013-2024 Porsche 911 Carrera 4
    2004,2013-2024 Porsche 911 Carrera 4S
    2015-2016,2018-2019 Porsche 911 Carrera GTS
    2012-2019 Porsche 911 Carrera S
    2002-2004,2008 Porsche 911 GT2
    2011 Porsche 911 GT2 RS
    2001-2005,2007-2008,2014-2019 Porsche 911 Turbo
    2005,2014-2019 Porsche 911 Turbo S
    1997-1999,2004-2011 Porsche Boxster Base
    2008 Porsche Boxster Limited Edition
    2000-2003 Porsche Boxster Roadster
    2000-2003 Porsche Boxster Roadster S
    2008 Porsche Boxster RS 60 Spyder
    2004-2011 Porsche Boxster S
    2008 Porsche Boxster S Limited Edition
    2009 Porsche Boxster S Porsche Design 2
    2004 Porsche Boxster S Special Edition
    2011 Porsche Boxster Spyder
    2004-2006,2008-2014,2016-2018 Porsche Cayenne Base
    2013-2016 Porsche Cayenne Diesel
    2014 Porsche Cayenne Diesel Platinum Edition
    2008-2010,2013-2018 Porsche Cayenne GTS
    2014,2017-2018 Porsche Cayenne Platinum Edition
    2003-2006,2008-2018 Porsche Cayenne S
    2015-2018 Porsche Cayenne S E-Hybrid
    2017-2018 Porsche Cayenne S E-Hybrid Platinum Edition
    2011-2014 Porsche Cayenne S Hybrid
    2010 Porsche Cayenne S Transsyberia
    2003-2006,2008-2018 Porsche Cayenne Turbo
    2006,2009-2010,2013-2014,2016-2018 Porsche Cayenne Turbo S
    2007-2012,2014-2016 Porsche Cayman Base
    2016 Porsche Cayman Black Edition
    2016 Porsche Cayman GT4
    2015-2016 Porsche Cayman GTS
    2012 Porsche Cayman R
    2006-2012,2014-2016 Porsche Cayman S
    2011-2016 Porsche Panamera 4
    2016 Porsche Panamera 4 Edition
    2014-2016 Porsche Panamera 4S
    2014-2016 Porsche Panamera 4S Executive
    2011-2016 Porsche Panamera Base
    2016 Porsche Panamera Edition
    2014-2016 Porsche Panamera S
    2014-2016 Porsche Panamera S E-Hybrid
    2012-2013 Porsche Panamera S Hybrid
    2005-2009 Volkswagen Touareg Base
    2011-2015 Volkswagen Touareg Hybrid
    2009-2011 Volkswagen Touareg TDI
    2012-2016 Volkswagen Touareg TDI Executive
    2012-2016 Volkswagen Touareg TDI Lux
    2014 Volkswagen Touareg TDI R-Line
    2012-2016 Volkswagen Touareg TDI Sport
    2004 Volkswagen Touareg V6
    2012-2016 Volkswagen Touareg V6 Executive
    2012-2016 Volkswagen Touareg V6 Lux
    2014-2015 Volkswagen Touareg V6 R-Line
    2012-2016 Volkswagen Touareg V6 Sport
    2010-2011 Volkswagen Touareg VR6
    2014 Volkswagen Touareg X
